mahindra pikup plates

[Jadranko]

it works,but.....

setup:
vehicle across shallow stream.front wheels against knee high obstacle.
rear wheels in between water polished rocks and in mud.

4x2 and pressure at 2.5bar

rope is 5mm dyneema with breaking strength of 3 tons tied to a tree 20M away.

capstan fitted on driver side.

rope winded up manually half way first layer and left loose about 2M.

test:
with difference in circumference between wheel and capstan it takes few moments to role on
extra 2M of rope.once rope is under tension(dyneema doesn't stretch) it pulls,and i mean it.
at that very moment front wheels pop up and to the left while rear slid to the right.
all in all vehicle did move forward,found traction for a moment and lost it again,for a reason
of capstan not rotating at same speed as wheel does,and rope got relaxed.
some wheel spin and engages again....and so on.

again,it works,but
needs constant wheel slip to keep rope under constant tension,like snow,mud,sand....
traction,no traction situation works clutch overtime
smaller the difference in between diameters of wheel and capstan the better it will work,
but it will become unpractical due it size,
especially if 2 are used to pull in straight line.

judgement on parts:
5mm dyneema was up to given job considering stress endured due to weight of vehicle and obstacle.
vehicle,capstan,wheel nuts:no damage

given obstacle was done many times without problem in 4WD.

[Jadranko]

can someone please advice me on why every time i open any thread here im asked to log in.
posting here as im sick of typing same thing over and over.
as i click submit button now this post will be visible and ill be logged out for some reason.
help

[iandvl]

can someone please advice me on why every time i open any thread here im asked to log in.
posting here as im sick of typing same thing over and over.
as i click submit button now this post will be visible and ill be logged out for some reason.
help

Joe - are you posting from a phone or a laptop ? Tapatalk or browser ? If browser, what browser (ie: Chrome/Internet Explorer/Edge/FireFox/Safari/Opera etc) ?

[Jadranko]

desktop/firefox

strange thing is i can see blue ribbon saying im on line while at a top page asking me to log in.

[iandvl]

desktop/firefox

strange thing is i can see blue ribbon saying im on line while at a top page asking me to log in.

Joe - do me a favour please.

1: Go to the "User Control Panel", and then click on Profile-> Manage "Remember Me" login keys.

Alternatively, just use this link which will take you directly there:

ucp.php?i=ucp_profile&mode=autologin_keys

2: Select all the login keys.
3: Click on delete.
4: Look at the bottom right of the forum, there is a link which says "Delete cookies".
5: It will ask: "Are you sure you want to delete all cookies set by this board?". Click on yes.
6: You will now be signed out as the session information associated with your browser will have been destroyed.
7: Please login again after this and see if the issue continues ?

[Jadranko]

thanks ian
will give it a try.

[Mad Manny]

can someone please advice me on why every time i open any thread here im asked to log in.
posting here as im sick of typing same thing over and over.
as i click submit button now this post will be visible and ill be logged out for some reason.
help

It may be because you post a Forum issue in a Thread about Mahindra mods in the Builds & Mods section?

[Jadranko]

my bad,sorry.
for my defense it was little irritating and time consuming.

this was a case:
main page...
1: i had to type password and username few times until accepted
2:click on build section takes me there but logs me out
3:look at number one
4:click on mahindra thread takes me there but logs me out
5:number one again
6:click on reply button take me there but logs me out
7:number one again
8:done typing,click on submit,and i'm out again and back on main page........

no more complain and derailing this thread from my side

[iandvl]

All fine Joe, but is the issue sorted out now ?

[Jadranko]

yes and thanks for assistance.

[Jadranko]

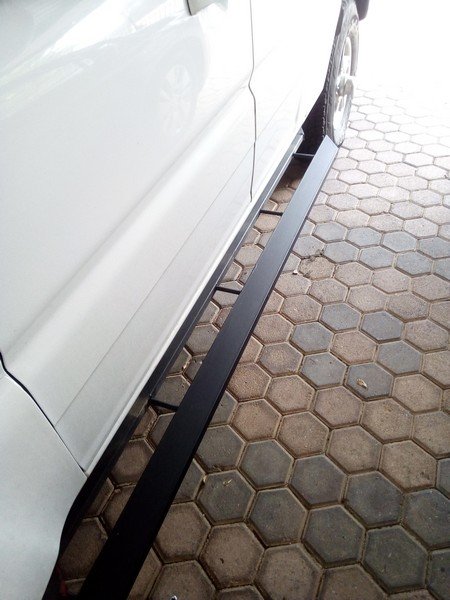

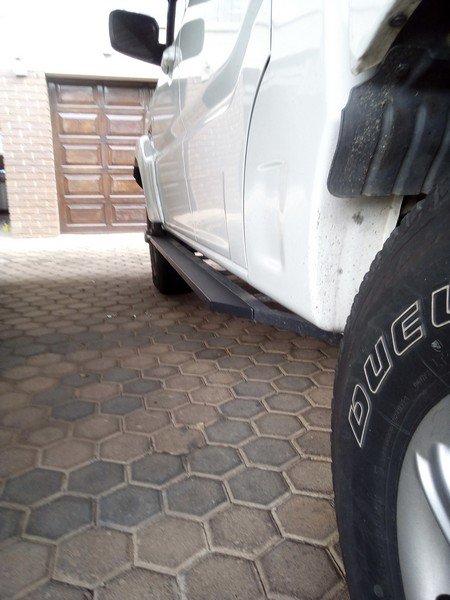

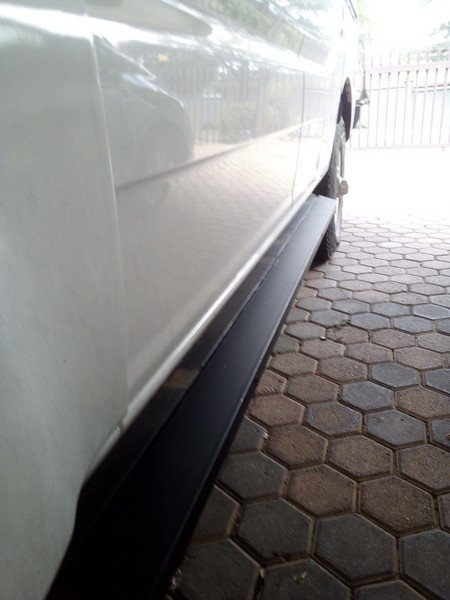

unique side steps to fit unique rock sliders.
they can still manage weight of the half of the bakkie.jacked until 2 wheels of the ground.
how much of real beating they can take ill test only next year.

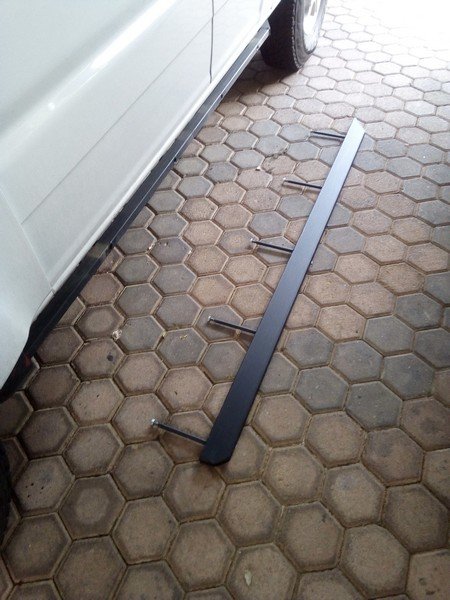

side steps are easy to install and remove(before trail),also fit inside canopy.

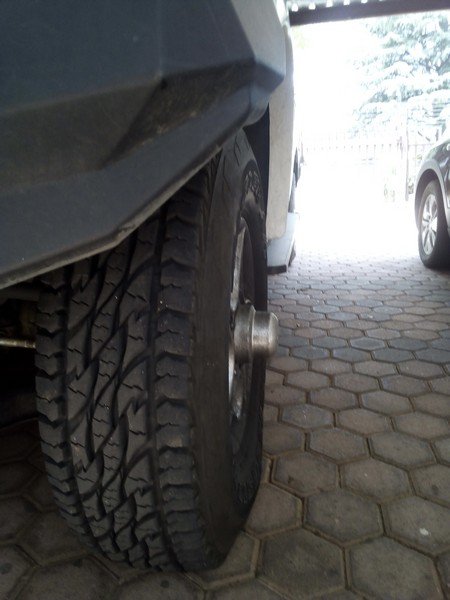

i made them to be in line with hub covers.

[Jadranko]

for future reference if needed:
front axle:
25590
25520
LM501349
LM501310

front axle seal part number:
0503CA0030N 57.6x28.91x7.8 mm

front wheel bearings for mahindra pikup,cup and cone.
BMG stocks them for little less than R1000 for set per wheel.

rear:
tapered roll bearing
part no:0502CAA01110N
alternatives are:
NU2210,U460L/U497 ,Timken Set 80. 80x45x24 mm

oil seal 0502CA0320N inner
0502CAA01120N outer

[Mad Manny]

Good Stuff Jadranko!!!!

[Jadranko]

for preventive cleaning and greasing of front bearings

front axle seal part number:
0503CA0030N 57.6x28.91x7.8 mm
can be obtained at MPD west rand for less than R60 per seal .
one per side is needed.
