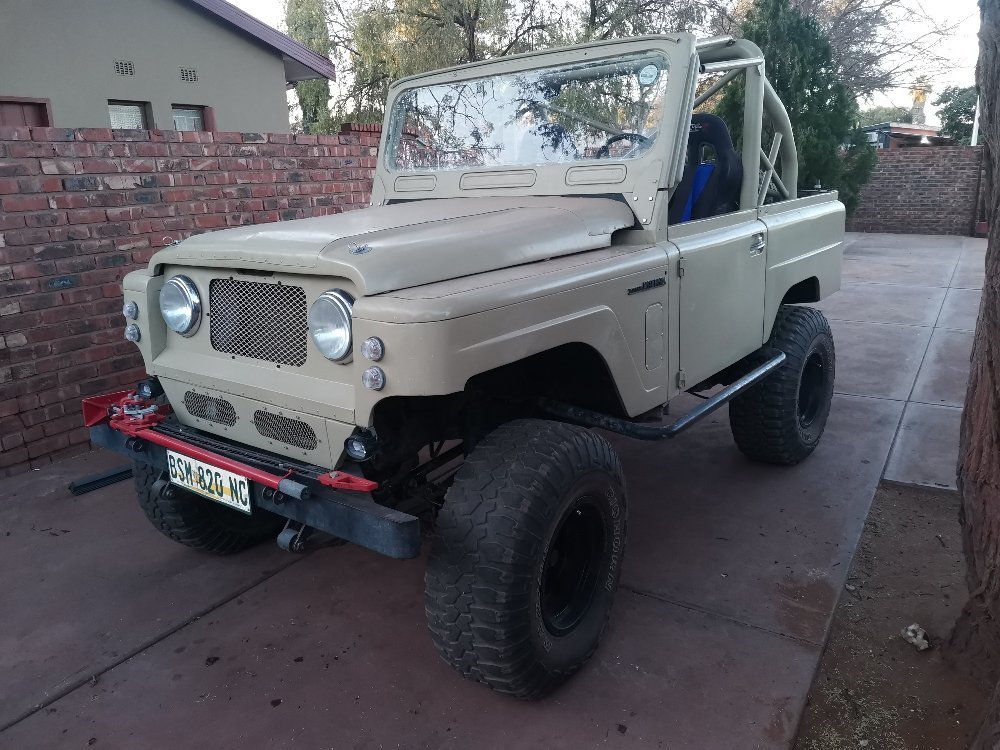

Little G60 Patrol

[grips]

Nothing wrong with the Motor

230kw and 500nm

[Ricof4e]

Nothing wrong with the Motor

230kw and 500nm

Daai is net genoeg krag om behoorlik kak aan te jaag

[grips]

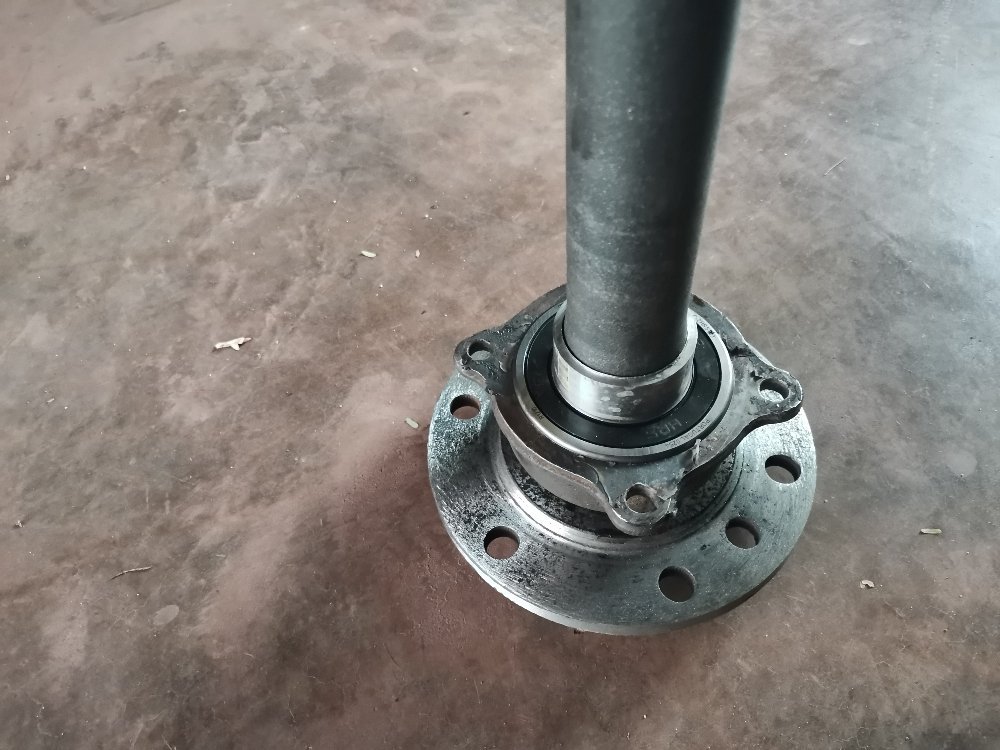

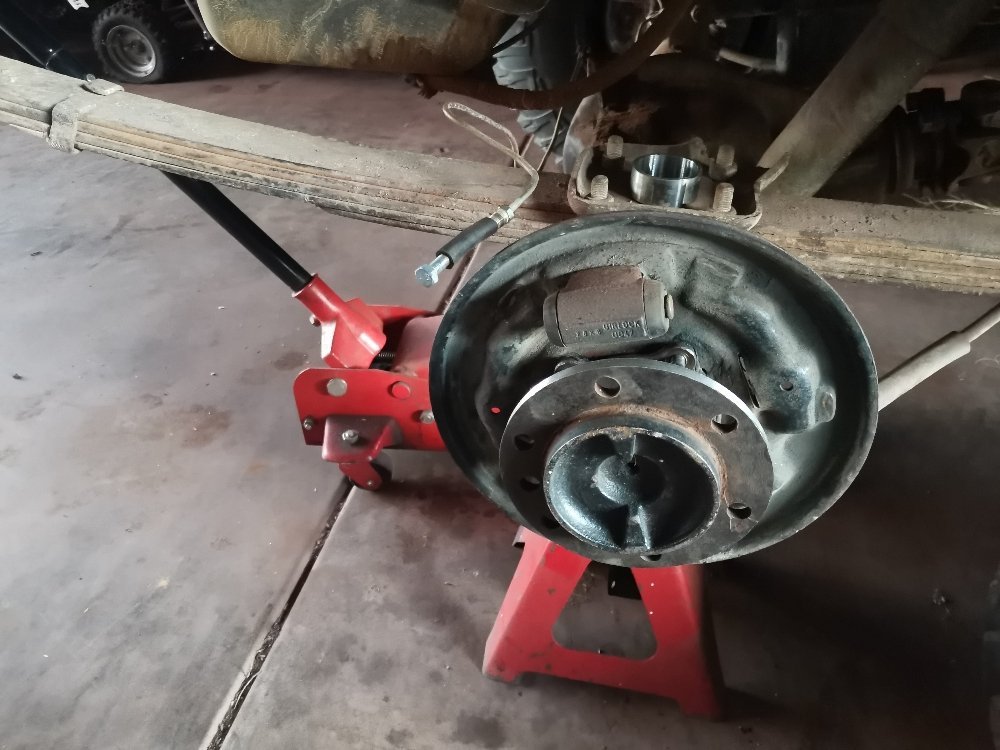

How do you make a Patrol side shaft ? ............................You take a Cruiser shaft and cut it down in size.
Were impossible to find a H200 rear shaft in SA.

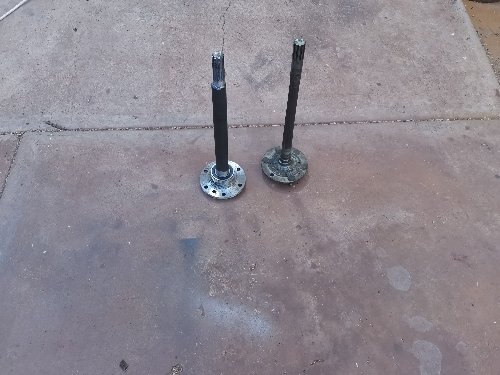

Took a shaft from a FJ 45 Cruiser cut and modified it on the lathe to fit the Patrol.

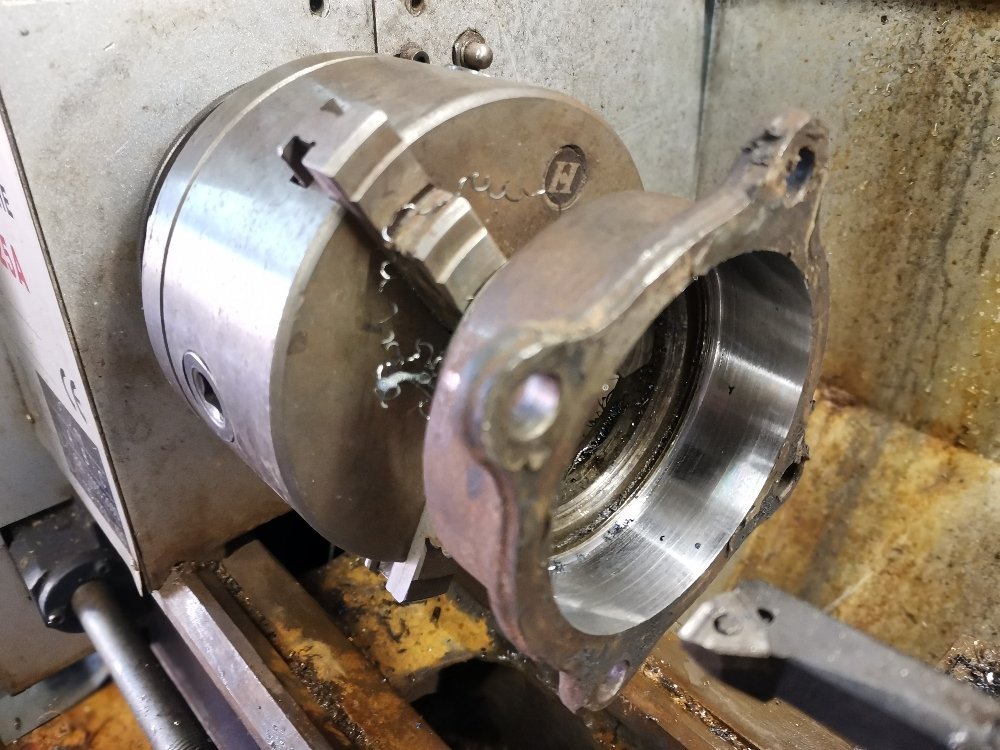

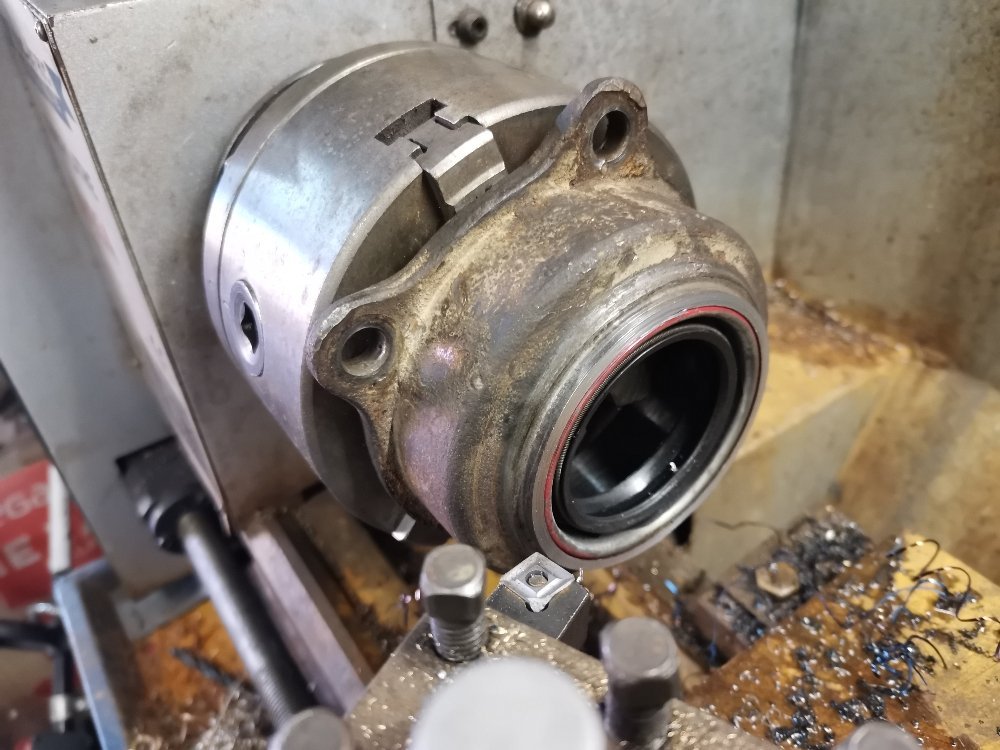

Cut the bearing housing to take a larger bearing and oil seal.

[david bfreesani]

Amazing work, well done.

[Flipside]

Kan ek ook jou kind wees?
Ek wil met daai toys en tools speel.

[Mad Manny]

Flip, you dont break enough Drive and Side Shafts to be a child of Christo's...

[AndreasR]

Jiss Christo that’s awesome work. I often wish that I had taken the time to learn such skills when I was younger so that I don’t have to pay other people to do such things.

[KurtG]

Grips, vertel vir ons bietjie: hoekom is die grond so rooi/pers daar by julle?

[grips]

Grips, vertel vir ons bietjie: hoekom is die grond so rooi/pers daar by julle?

Dit val uit die lug Stof van die myne wat oor tyd alles rooi kleur.

[Bugger]

Mooi vordering

[CornellMans]

Sal nie omgee om so een te besit nie. Wens ek het die kennis, gereedskap, tyd, kapitaal en geduld gehad om so iets te bou. Knap gedaan Oom Grips

[Bugger]

Sal nie omgee om so een te besit nie. Wens ek het die kennis, gereedskap, tyd, kapitaal en geduld gehad om so iets te bou. Knap gedaan Oom Grips

Hy het soos ons almal met n Kas Kar begin toe hy n Lighty was en Ronde Wiele op sy Kaskar gefit om vinniger te glide
toe fit hy sy 50cc se motor en dit was seker die "Turning" Point van ons Almal

Maar yes Grappie op n Stokkie

Ons almal het Verskillende Skills level

Grips se een is op Hoer Graad

[grips]

This was a sideline project. The kids did most of the work. I only built the engine and the Land Cruiser H55 conversion. The rest of the project were completed by the kids.
Nice little 302 Ford V8 with Edelbrock alu heads and top end kit. Edelbrock claims 278kW and 462Nm. I bumped the compression and went for a more torque with a more 4x4 orientated cam. Think it is good for 230kw and 500nm.

PLan to install FJ45 Cruiser diff`s in the future.

https://www.edelbrock.com/performer-rpm ... -2091.html

[Bugger]

Any updates

[grips]

Nothing to report but the plan is to put the little Patrol on Toyota FJ 60 or FJ 45 diff`s
